Thursday, January 27, 2011

Some interior walls framed

Last week I sketched out a wiring plan for our house on a copy of the floor plan I printed out. We aren’t concerned about inspections since our electricity will be completely off-grid, powered by our solar electric system. Not that inspections are a horrible thing, mind you, it’s just that I don’t feel the need to conform to unnecessary regulation and interference. I’ll be doing the wiring myself and will assure that it’s safe, of course.

With the wiring plan laid out, I calculated the number of electrical boxes, outlets, and switches we’ll need and purchased those late in the week. Early this week, I bought some 2x4s for framing interior walls. I also bought some 2x12s for building stairs.

I refigured my stair design and began laying it out on the floor in the house. In order to optimally use the space in the house, we’ve planned the closet in the master bedroom to be underneath the stairs. The stairs will rise 12 steps to a landing where they will turn to the left and continue up four more steps to the second floor. The main part of the closet is to be under the landing. It’s high enough that I won’t bump my head.

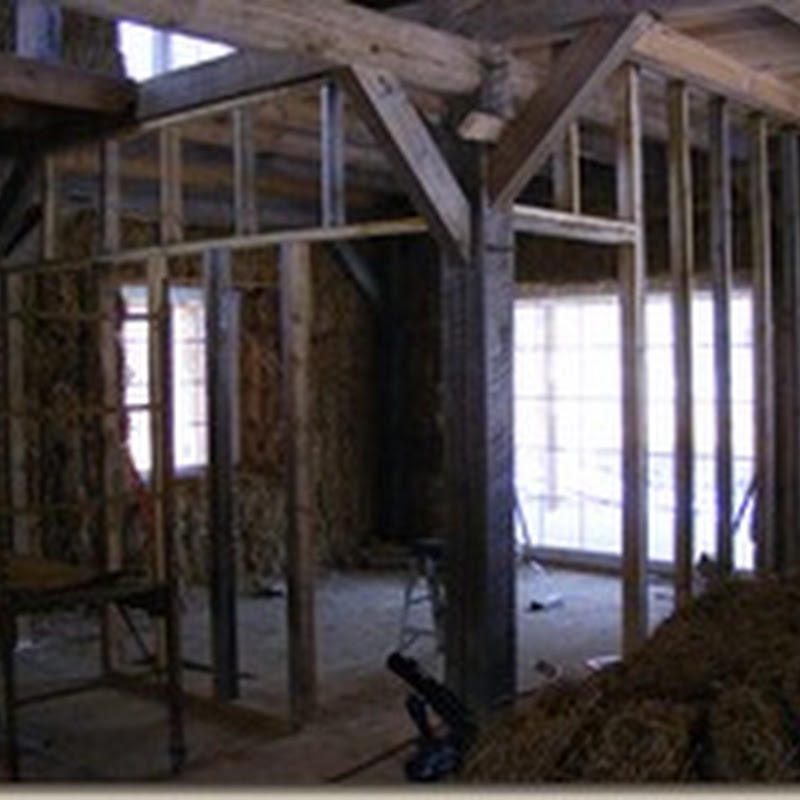

With my plans refigured and physically sketched out on the floor, I started framing some interior walls. The first wall I tackled is the one between the master bedroom and the living room. With a couple of hours before chore time yesterday afternoon, I designed the wall, drew it out on paper, figured the lengths of 2x4 I needed, cut the 2x4s to the specified lengths, and nailed it all together.

Having gotten the 2x4s from the local salvage guy, they were in various lengths. I had three 20 footers, several 16 footers, 14 footers, 12 footers, 10 footers, and some 8 footers. With a list of the specific lengths I needed for the wall, I was able to figure out the best way to use the material for the least amount of waste. I don’t like wasting material.

Once the wall was assembled on the floor, I stood it up into place. The top of this particular wall had to fit 008between two of the 4x6 floor joists which necessitated putting the top of the wall in place first. Once I had the top close to where it needed to be, I was able to drive the bottom into place. After getting it plumb, I nailed the wall into place.

This morning, I started on the other interior wall of the master bedroom. Anne and I discussed 011the location of the doors for the closet and the bathroom which are to be on this wall. Once we had these finalized, I could layout the wall and put it together. Perhaps the most challenging thing about this wall was the two angle braces of the timber frame that it had to fit against, although it really wasn’t a problem.

This afternoon I framed a couple of short walls for the closet. These walls are necessary to 014support the landing for the stairs. I also framed the stair landing and put it in place.  This will make it possible to begin framing the stairs soon. There are a few other walls in the stair area that also need to be framed. They’ll create the other bathroom, enclose the space under the stairs, and support some additional floor upstairs at the top of the stairs.

021I mentioned in a previous post that I intended to cut a door in the pantry floor to allow access to the crawl space from inside the house. 023Since I wanted to put a brace under a couple of floor joists in the area under the bathrooms (the floor wasn’t quite level in this area because of variation in the 4x6 floor joists in the timber frame), I decided it was a good time to cut the access. The alternative would’ve involved getting muddy to go through the other access door in the block wall.

I’m quite pleased with the door I cut in the floor. I think it will work quite well. There is enough space between the floor joists for accessing the crawl space easily. I’ll make a couple of steps down into the crawl space later on.
